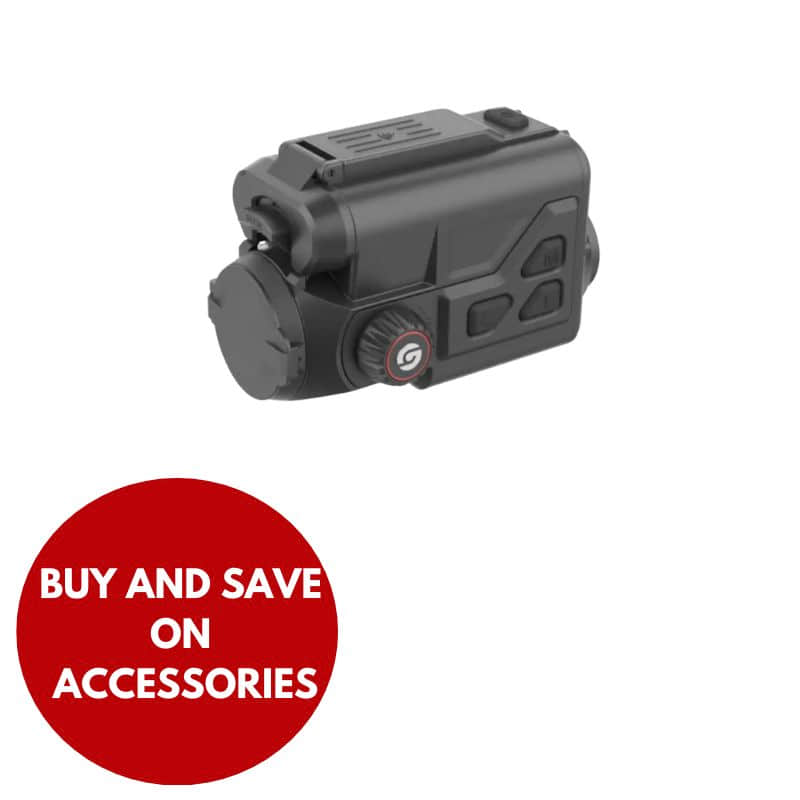

Guide TB630 Thermal Clip On

by Guide
Save $540.00
Original Price $3,599.00
Current Price $3,059.00
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 1 left!
https://cdn.shopify.com/s/files/1/0648/1959/3356/t/3/assets/Trust%20Badges.jpg?v=1721870455

Guide TB630 Thermal Clip On

The TB Series revolutionises hunting equipment by seamlessly integrating precision and portability. Its magnesium alloy housing not only reduces weight but also enhances accuracy, making it over 20% lighter than comparable products. With it’s 640 x 512 @12μm sensor, 35mm lens and Full-HD AMOLED display boasting wider viewing angles and richer colours, the TB630 sets a new standard in relaxed hunting experiences.

*Guide Clip On Adaptors must be purchased seperately here



KEY FEATURES:

  • 12μm advanced thermal detector, NETD<25mK
  • Full-HD 1920×1080 AMOLED display
  • Magnesium alloy housing, compact design, light weight but powerful
  • Detection range up to 1800m
  • Two Standard 18650 batteries provides up to 12 hours of operation
  • Double Side focus knob for easy operation
  • Video recording including sound
  • IP68, Shock resistance up to 1000G/ms



WHAT'S IN THE BOX:

  • TB630 Thermal Clip On Scope
  • Battery Charger (x1)
  • 18650 Battery (x2)
  • 5V2a Adapter (x1)
  • USB Type-C Cable (x1)
  • Quick Use Guide (x1)
  • Warranty Card (x1)



TECHINICAL DATA SHEET:

Discover more features and technical data about the Guide TB630 Thermal Clip On, view the TDS here



Guide TB630 Thermal Clip on Specifications
Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 20mK
Frame rate 50Hz
Lens
Objective lens 35mm, F1.0
Field of view 12.5°×10.0°
FOV m@100m 22×17
Magnification 1x
Detection range 1800m/1950yd
Display
Display type 0.39'' AMOLED 1920×1080
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 20mm; Zoom: 9.5x
Hardware
WIFI 2.4G, 5G
Interface USB Type-C (Power supply/USB2.0)
Others Microphone, Bluetooth
System
Recording function Photo/Video (Audio recording included)
Memory capacity 64GB
Power
Battery type 2 replaceable 18650 batteries
Operating time 10 hours
Environmental
Operating temp. -20°C to 50°C / -4°F to +122°F
Shock 1000G at 1ms half sine pulse (as per IEC60068-2-27)
Encapsulation IP68
Physical
Weight (g/oz) 440/15.52
Size (mm/in) 128×79×79/5.04×3.11×3.11
Standard A device, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card
Optional 18650 battery, Bluetooth remote control, Cover ring adapter
