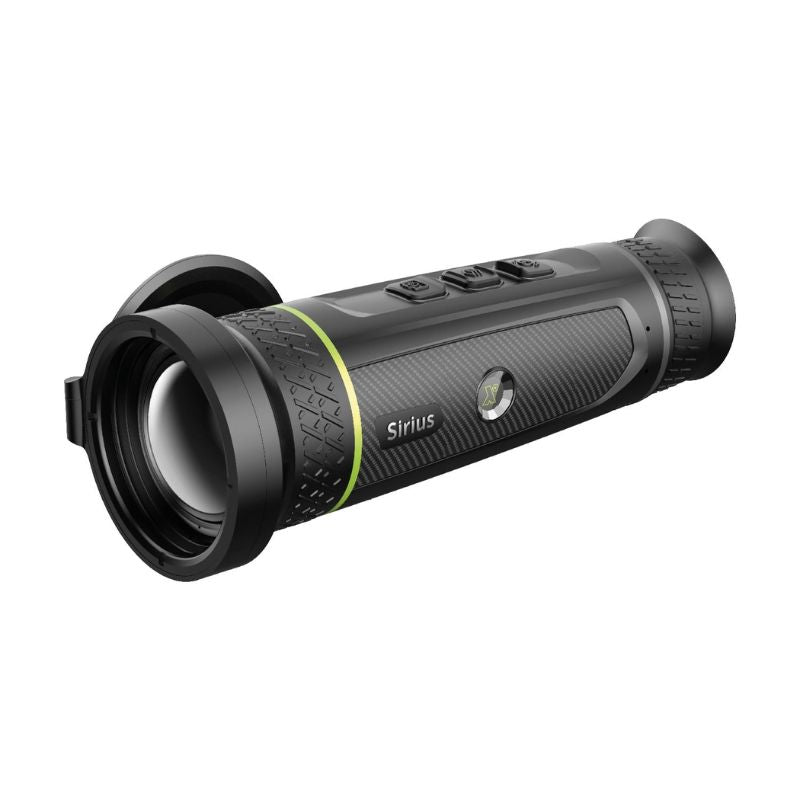

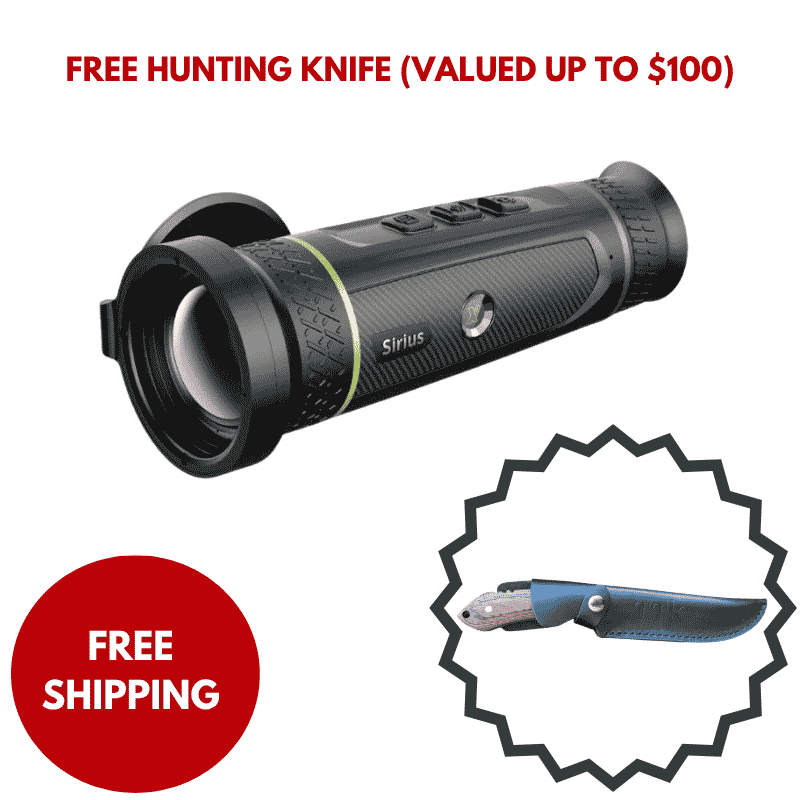

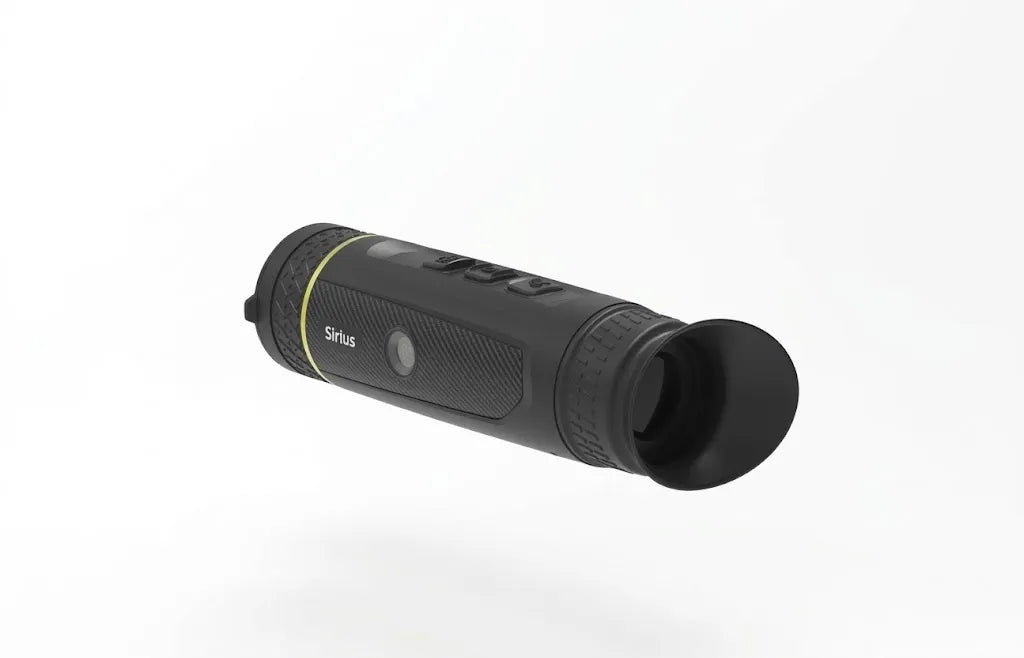

The Pixfra SIRIUS S650D Thermal Monocular combines a high-resolution 640×512 thermal sensor with a versatile dual-FOV lens system, giving you both a 25mm wide field of view for scanning and a 50mm view for detailed observation in one compact device. With ≤18 mK NETD sensitivity, 50 Hz imaging and Pixfra’s PIPS 2.0 image processing, it delivers clear, responsive thermal imagery in challenging conditions.
Designed for hunters and outdoor users who need flexibility in the field, the S650D seamlessly transitions between wide-area searching and closer target observation without the need to refocus. A 1920×1080 OLED display, up to 8× digital zoom, 2,600m detection range, built-in 64GB storage and replaceable 18650 battery make it a capable thermal monocular for demanding nighttime observation.
Looking for detailed information on using the Pixfra SIRIUS S650D (Dual FOV) Thermal Monocular?
Then check out this user manual below.
| Specs | Details |
|---|---|
| Product Model | PFI-S650D |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 640 (H) × 512 (V) |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm–14 μm |
| Sensitivity (NETD) | ≤18 mK @ f/1.0 |
| Focal Length | 25 mm; 50 mm |
| Thermal Focus Control | Manual |
| Close Focus Distance | 25 mm: 2 m (6.56 ft); 50 mm: 8 m (26.25 ft) |
| Aperture | 25 mm: F0.88; 50 mm: F1.1 |
| Field Of View | 25 mm: H 17.9°; V 14.2° / H 30.7 m; V 24.6 m @ 100 m50 mm: H 8.8°; V 7.0° / H 15.4 m; V 12.3 m @ 100 m |
| Detection Distance | 25 mm: 1,300 m (4,265.09 ft); 50 mm: 2,600 m (8,530.18 ft) |
| Digital Zoom | 1×; 2×; 4×; 8× |
| Magnification | 25 mm: 1.72×; 50 mm: 3.45× |
| Frame Rate | 50 Hz |
| Screen | 1920 × 1080, 0.49 inch, OLED |
| Colour Palettes | 6 (White Hot / Black Hot / Iron Red / Alarm / Amber / Emerald) |
| FFC Calibration | Auto, Manual, External Correction |
| Hot Spot Trace | Yes |
| Wi-Fi Hotspot | Yes |
| Video Recorder | Yes |
| Snapshot | Yes |

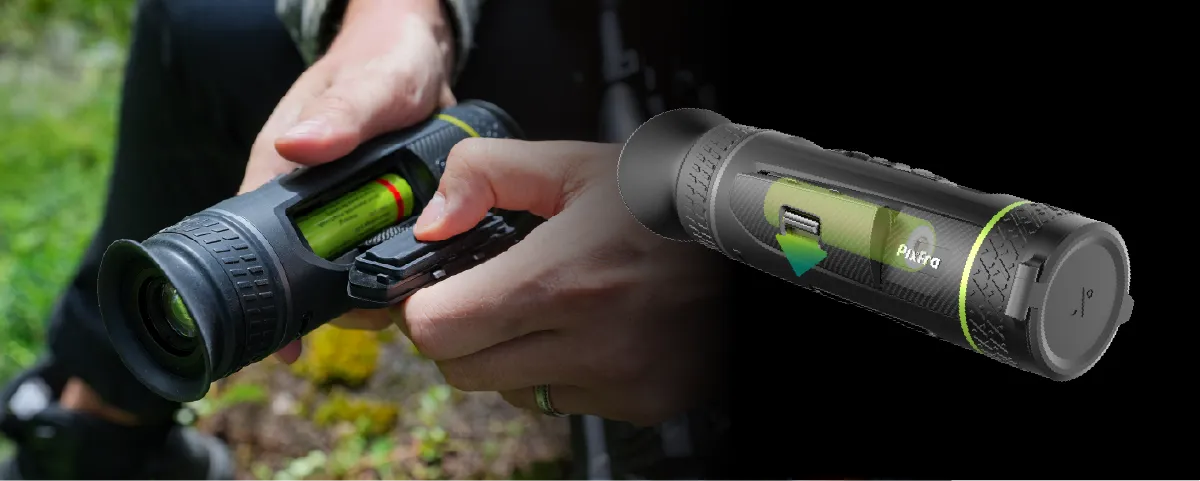

| Battery Type | Replaceable 18650 battery |
| Battery Life | ≥6 h |
| Power Supply | 5 VDC / 2 A |
| Port | USB Type-C |
| Operating Temperature | –30 °C to +55 °C (–22 °F to +131 °F) |
| Protection Grade | IP67 |
| Product Dimensions | 223 × 61 × 71.4 mm (8.78 × 2.4 × 2.81 in) (L × W × H) |
| Packaging Dimensions | 291 × 140 × 127 mm (11.46 × 5.51 × 5 in) (L × W × H) |
| Net Weight | 537 g (1.18 lb) |
| Product Type | Dual FOV Thermal Monocular |
