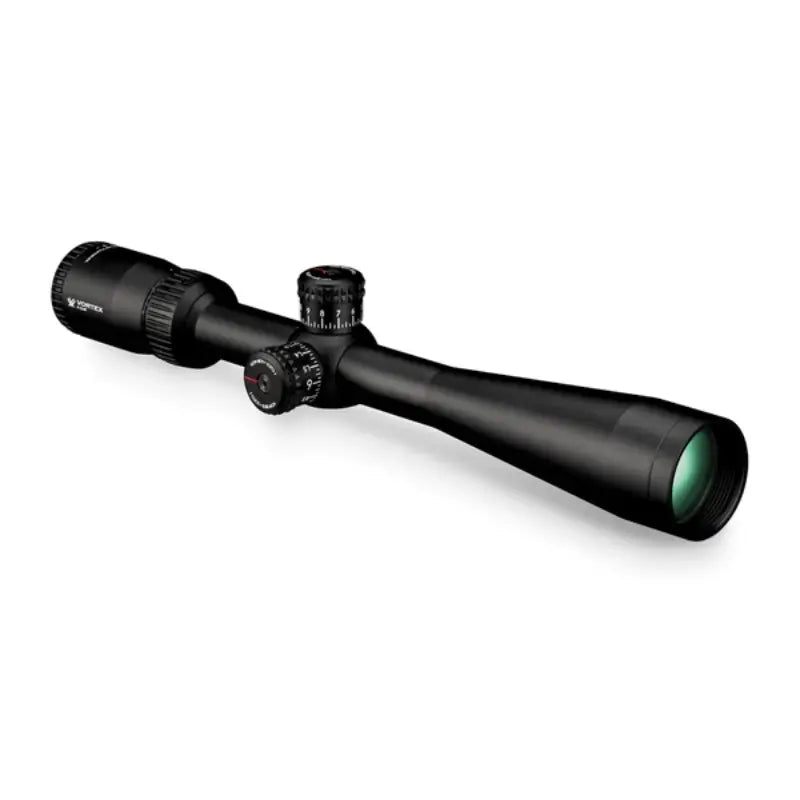

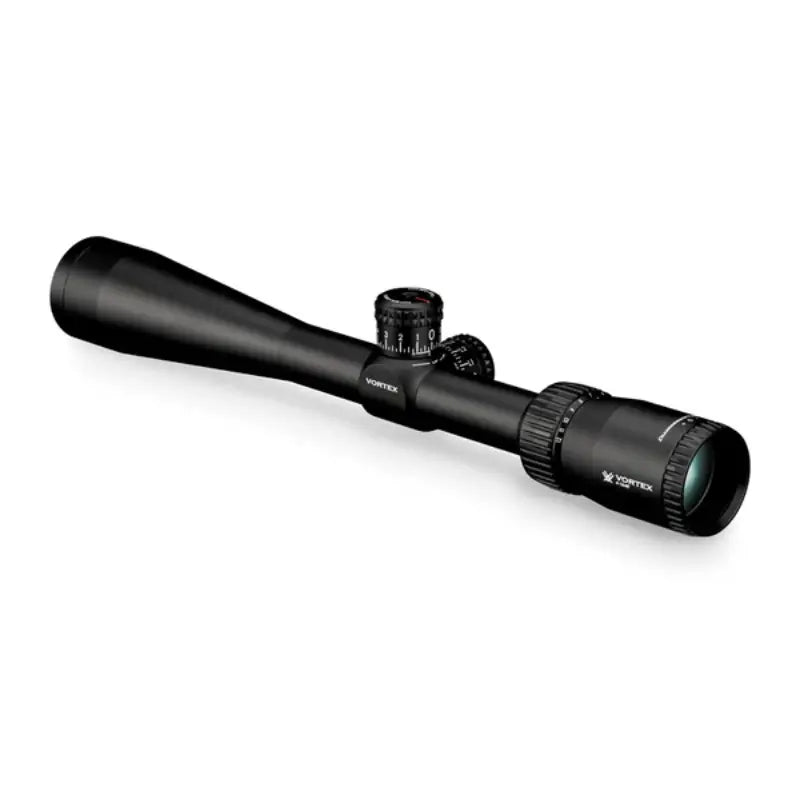

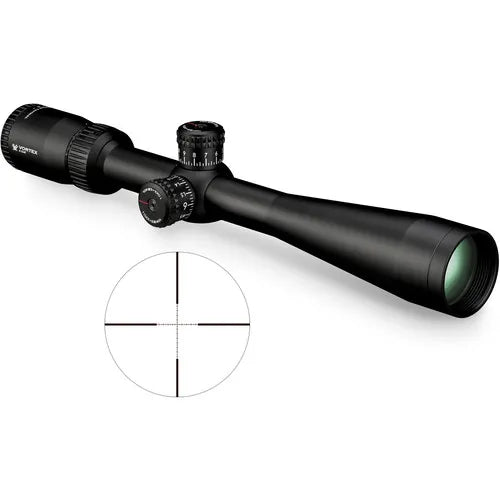

VORTEX DIAMONDBACK TACTICAL 4-12x40

SKU VODBK10025
by Vortex
$535.00
https://cdn.shopify.com/s/files/1/0648/1959/3356/files/Product_USP_Badge_1000x396px_8c6e18c7-094d-4f8b-96ee-658f270b904e.png?v=1739953924

Unlock Precision and Performance with the Diamondback Tactical 4 12x40



Whether you're a seasoned hunter or a farmer looking to protect his property from pests, the Diamondback® Tactical Riflescope is engineered to bring your shooting game to the next level. Designed for extreme accuracy and durability, this scope ensures you are on target — even at extended ranges.

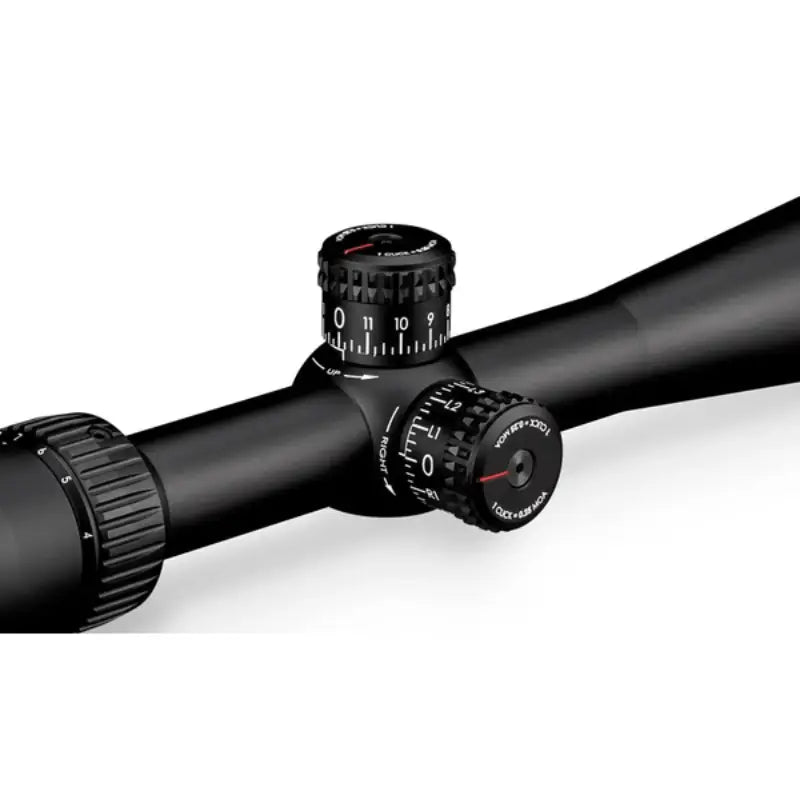

With its exposed tactical turrets, you can dial in elevation and windage adjustments quickly and accurately, compensating for bullet drop and wind drift like a pro. These turrets track with unmatched precision, reliably returning to zero, so you can trust your adjustments every time. Plus, the zero reset feature allows you to re-index your turret after sighting in, while fiber optic rotation indicators give you a clear, visible cue of your turret’s position.





What makes the Vortex Diamondback Tactical 4 12x40 VMR 1 Special?



Optical Excellence:

  • XD™ Lens Elements: Experience sharper, more vibrant images with extra-low dispersion glass, enhancing resolution and color fidelity for precise target acquisition.



  • XR™ Fully Multi-Coated: Proprietary multi-coatings increase light transmission, ensuring crystal-clear images, even in low light.



  • Second Focal Plane Reticle: The reticle remains the same size at all magnifications, with accurate holdover and wind drift compensation for precise shooting.



Built to Last:

  • 1-inch, 1 piece Tube: Maximizes alignment for optimal visual performance, ensuring strength and water resistance.



  • Aircraft Grade Aluminum: Crafted from a solid block of premium aluminum for maximum durability and rigidity.



  • Waterproof & Fogproof: O-ring seals keep moisture, dust, and debris out, while nitrogen purging prevents fogging in extreme conditions.



  • Shockproof: Built to withstand recoil and impact, ensuring long-lasting durability.



  • Hard Anodized Finish: A matte, low-glare finish helps keep your position hidden, even in the toughest environments.



Precision and Convenience:

  • Precision-Glide Erector System: Enjoy smooth zoom adjustments, even under the harshest conditions.



  • Fast Focus Eyepiece: Easily adjust the reticle for a clear view every time.



  • Fiber Optic Radius Bar: Visually tracks turret rotations for quick and accurate adjustments.



  • Magnification Rib: A raised rib on the magnification ring allows for fast changes during intense moments.



vortex diamondback tactical 4 12x40 dimensions

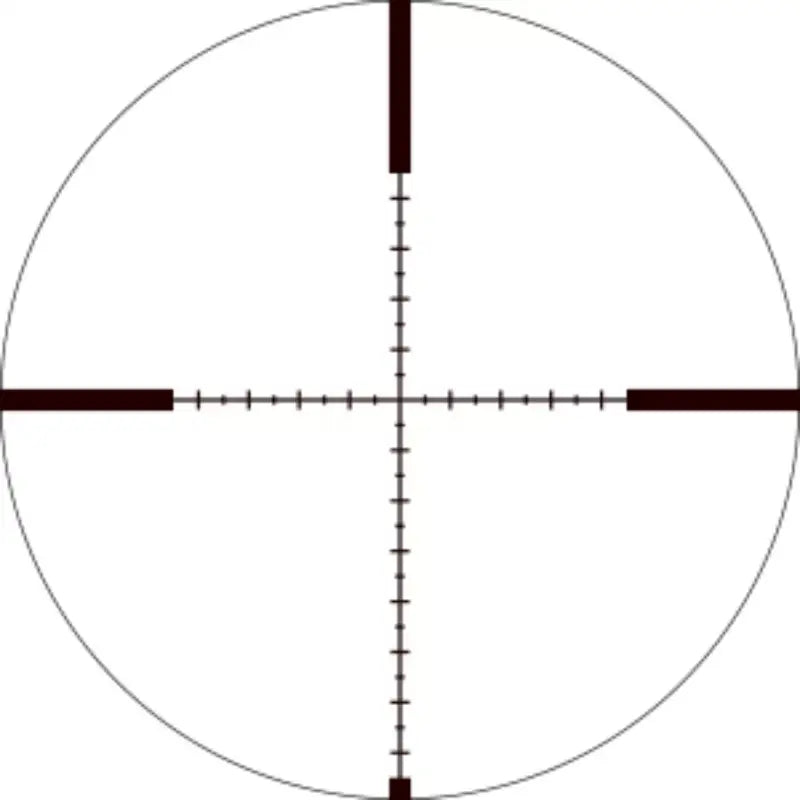

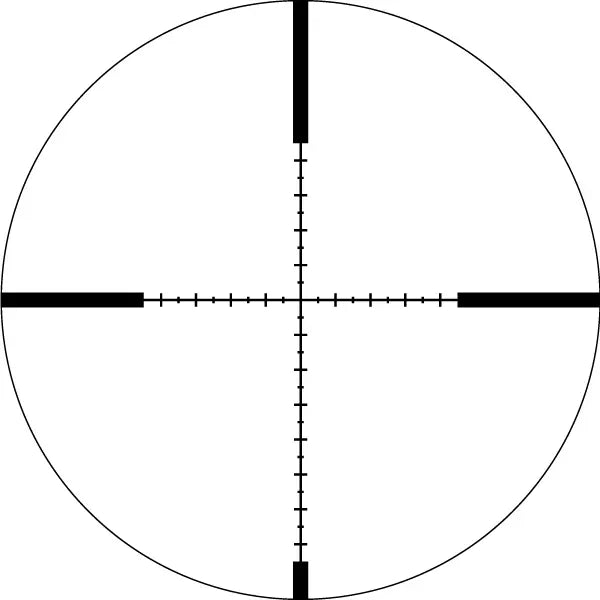

The VMR-1 Reticle: Designed for long-distance shooting, the VMR-1 MOA reticle makes it easy to estimate ranges, adjust holdovers, and make windage corrections — even for moving targets.



What's in the Box?

  • Vortex Diamondback 4-12x40 Tactical Riflescope
  • Lens Covers
  • Lens Cloth



Discover more features and technical data about the Vortex Diamondback 4-12x40 Tactical Riflescope below:

diamondback tactical 4 12x40 reticle manual
Product Manual



vortex diamondback tactical 4 12x40 vmr parts diagram

 Parts Diagram



diamondback tactical 4 12x40 reticle manual

 Reticle Manual



For hunters and farmers who demand precision, durability, and the ability to adapt to any situation, the Diamondback® Tactical Riflescope is the ultimate tool to ensure every shot counts. Ready to make your mark?

VORTEX DIAMONDBACK TACTICAL 4-12x40 SPECIFICATIONS
Magnification 4-12x
Objective Lens Diameter 40 mm
Focal Plane Second Focal Plane
Reticle VMR-1 (MOA)
Eye Relief 3.9"
Field of View 23.6' - 7.9' @ 100 yds
Turret Style Exposed
Tube Size 1 inch
Adjustment Graduation 1/4 MOA
Travel Per Rotation 12 MOA
Max Elevation Adjustment 70 MOA
Max Windage Adjustment 70 MOA
Parallax Setting 100 yds.
Length 14.1"
Weight 17.5 oz
